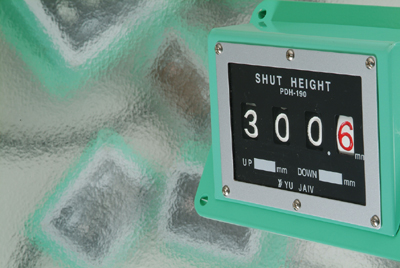

PDH-190

《Product Introduce 》：

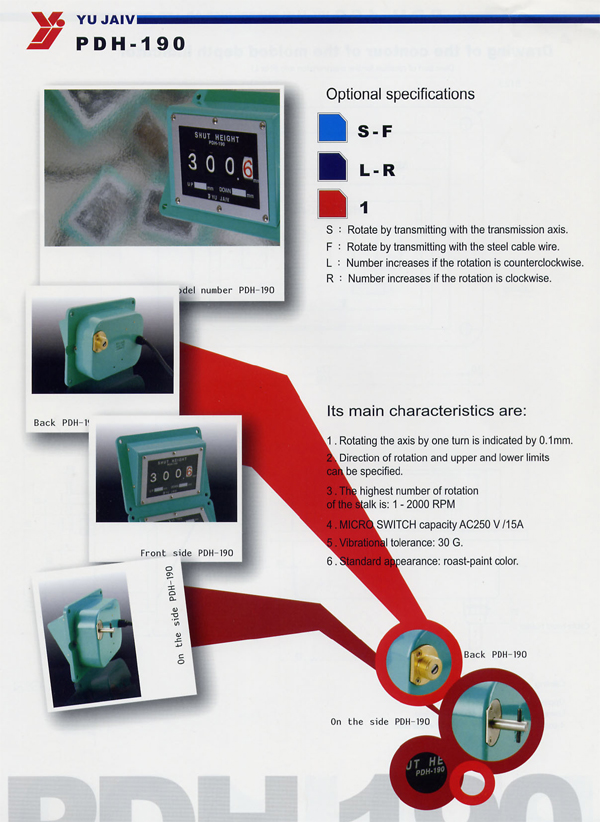

Optional specifications：
S-F / L-R / 1
S:Rotate by transmitting with the transmission axis.
F:Rotate by transmitting with the steel cable wire.
L:Number increases if the rotation is counterclockwise.
R:Nunber increases if the roation is clockwise.

Its main characteristics are：
(1).Rotating the axis by one turn is indicated by 0.1mm.
(2).Direction of rotation and upper and lower limits can
be specified.
(3).The highest number of rotation of the stalk is:
1-2000 RPM
(4).MICRO SWITCH capacity AC250 V/15A
(5).Vibrational tolerance:30G
(6).Standard appearance:roast-paint color.
